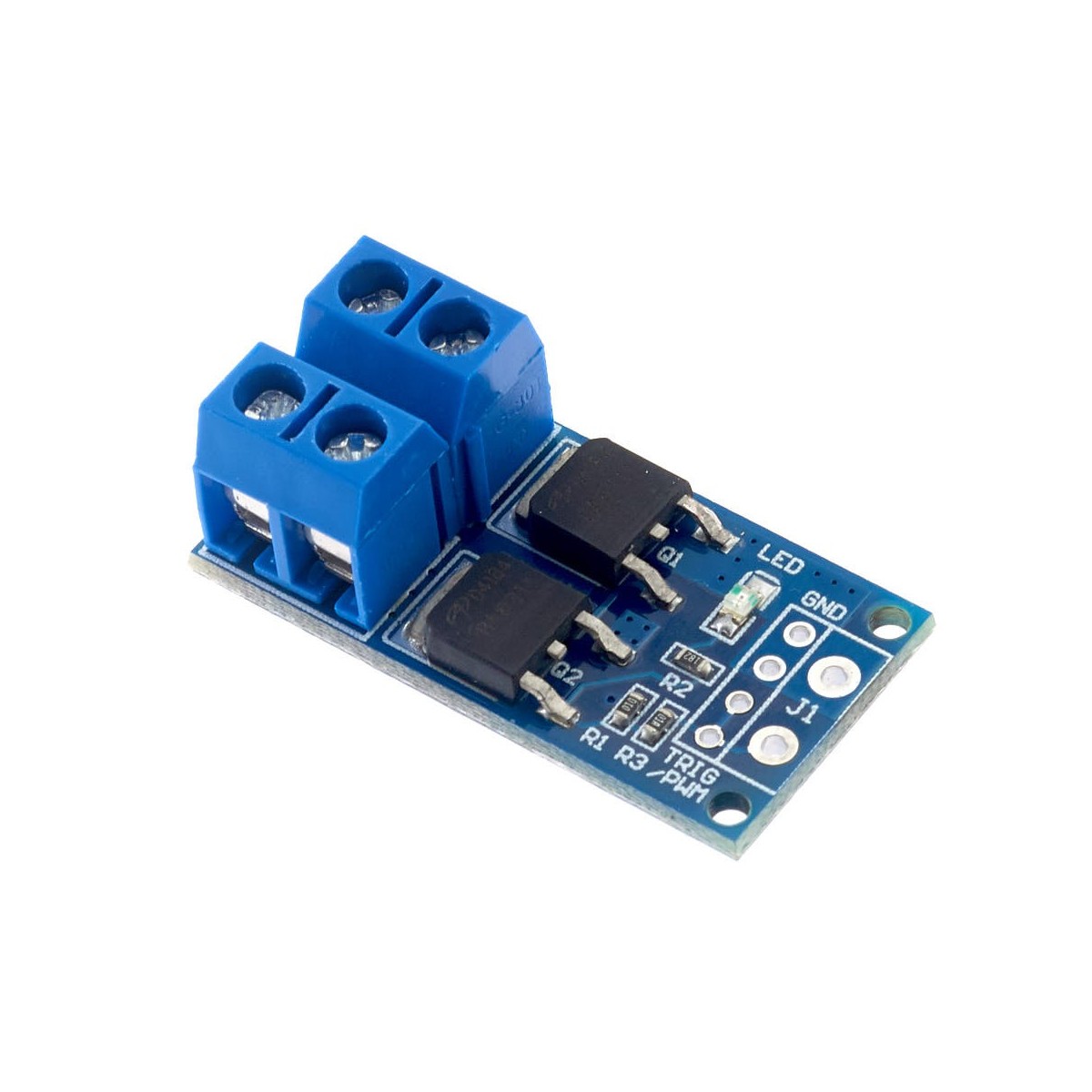

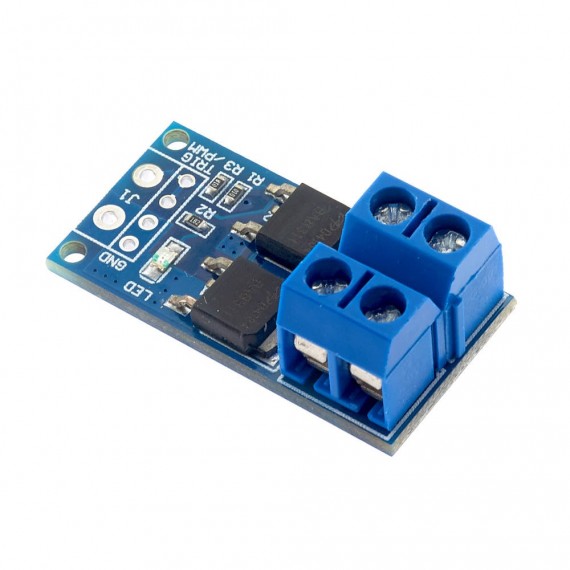

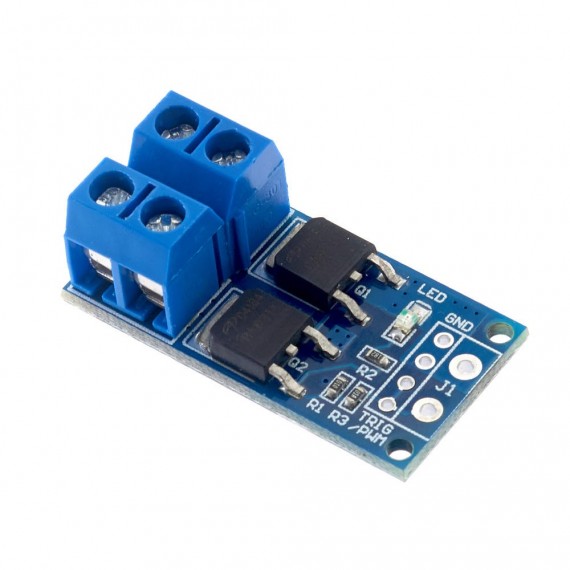

Driver Mosfet 15A dual-MOS AOD4184A parallel

DRV-DMOS-AOD4184A

851

Controla cargas de hasta 15A con este compacto y poderoso driver.

Más detalles

S/. 5,00

Descripción

INFO

Muchas veces es necesario manejar cargas de más de 2A de corriente, por lo que ya no es posible utilizar el conocido driver L298N. Este módulo Mosfet 15A dual-MOS AOD4184A parallel es capaz de manejar una carga de hasta 15A. Soporta control por PWM. Puede manejar cargas como: válvulas solenoide 24V DC, motores DC, Celdas Peltier de hasta 15A, Luces LED de alta potencia.

Los transistores de tipo Mosfet presentan mejores características que los BJT en aplicaciones de encendido/apagado de cargas de alto amperaje. Para activar el mosfet se debe de enviar 5V al Gate del Mosfet, esto permitirá que la corriente fluya a través de la carga y esta se active.

Cuando se utiliza este módulo en aplicaciones de alto consumo puede ser necesario utilizar un disipador de calor o ventilador (no incluidos). Para corrientes menores a 6A no es necesario ningún disipador.

Single Channel Power MOSFET Switch Module [3.3V-36V] [15A] package contains 5 pieces of the high power active switch that can be controlled by an external trigger signal such as a PWM signal, DC signal, etc. This switch module is based on a pair of high power MOSFET that be triggered by a trigger signal to switch the driving line of electrical or electromechanical devices. These two MOSFETs are parallel that create parallel active output to achieve more conductivity, less internal resistance, more electric current, and higher power. This switch can continuously conduct 15A high current at 5V up to 36V DC and so 400W power in common environmental condition resulted in supporting a variety of high power devices without any consideration.

This switchboard has 3 pairs terminal, a pair of screw terminal for supplying, 1 pair screw terminal for output driving line (connect to the power device) and a pair of pad solder for input triggering signal. This active Switch can be supplied with a wide range of voltages from TTL logic level (3.3V) up to 36V DC power supply that can be commanded from a 3.3V up to 20V trigger signal of the single-chip IO port, PLC interface, through a PWM signal (signal frequency 0--20KHZ perfect support), DC power supply, etc. This switchboard can be used for driving and controling (by PWM pulse, etc.) power equipment such as electromechanical motors, light lamps, LED light modules, DC motors, micro-pumps, solenoid valves, etc.


ESPECIFICACIONES TÉCNICAS

  • Voltaje alimentación (VCC): 5V-24V DC (recomendado 12-24V)
  • Voltaje de control (S): 3.3V-5V TTL
  • Voltaje de salida: 5V-36V DC
  • Corriente máxima:  30A DC
  • Control Voltage: 3.3V ~20V
  • Output Voltage: 5V ~ 36V DC
  • Peak Current: 30A (10 seconds)
  • Output Continuous Current: 15A
  • Channel: 1 Channel
  • Battery Protection Mode: No
  • Operating temperature: -40°C ~ +85°C
  • Cooling Fan: NO
  • Arduino Sheild: No- can be used with Wire connection
  • Speed Control: Yes
  • Polarity Protection: NO

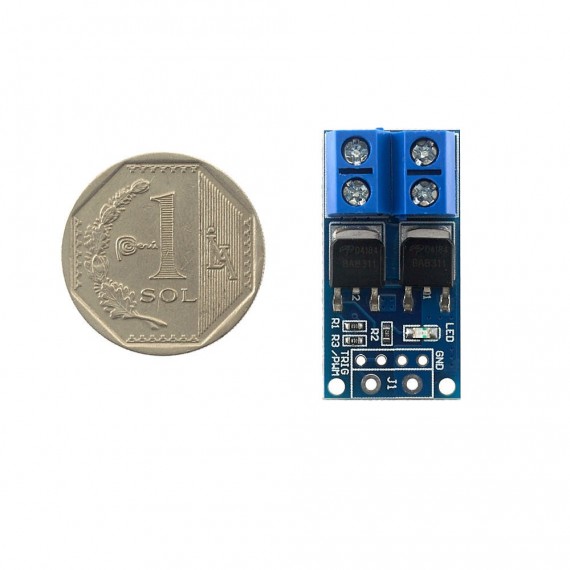

  • Size: 34mm x 17mm x 12mm (LxWxH)
